156X-4 Through Roof

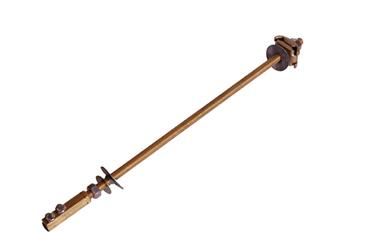

Through roof assembly with a premium die cast parallel connector at the top end that will accept two cables above the roof. A 1/2" diameter x 18" long brass all thread riser provides the through roof transition to a machined brass vertical connector at the lower end of the assembly. This assembly is typically used as a transition from roof to downlead cables at large eave overhangs or to bring exposed air terminals through the roof to a concealed system. For all conductors through No. 506. This unit includes 2 lead washers, 2 flat washers and 2 hex nuts to provide support and weather proof seal.

96

  • Different length riser bars are available. Contact factory for additional information.
